Network Cabinets:


Kore Konect manufactures all types of Wall mount, Floor Standing Network & Server cabinet, Co-location cabinets, Datacenter Solutions & IP66 Outdoor cabinets to provide the perfect solution to keep your devices or equipment organized and protected. The size covers a range of 7U to 51U offering the best option for device protection and proper cabling termination.


  • Floor Standing Cabinets
  • Co-location Cabinets
  • Wallmount Cabinets
  • Outdoor Cabinets

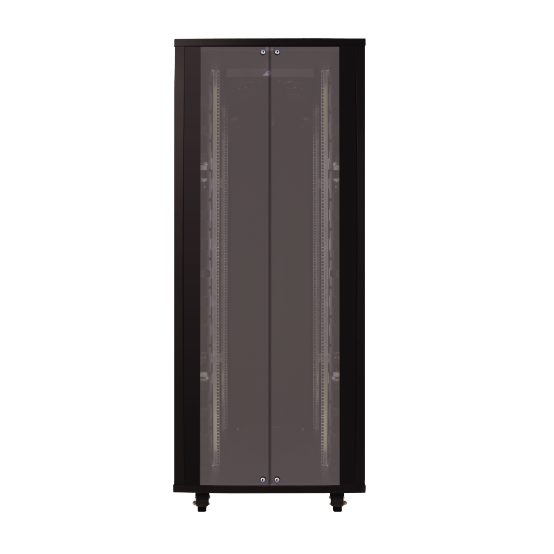

Floor Standing Cabinets:


Free standing cabinets provide a robust, cost-effective enclosure solution. This cabinets offer you a flexible and comprehensive solution for your network installations In terms of housing, you have numerous 19″ options with installation depths of 600mm, 800mm and 1000mm. With heights from 16 to 51 unit in Black (RAL9005) or Light Gray (RAL7035). The removable side panels and the lockable tempered glass door make cabling and component exchange particularly easy.


  • 19’’Free Standing type rack cabinet.
  • In the Width (600mm, 800mm) & Depth (600mm, 800mm, 1000mm) range.
  • From 16U to 51U rack cabinets are offered.
  • Carrying frame is steel construction with 1.2mm thickness
  • Openable and lockable side and back covers.
  • Adjustable feet and heavy duty castors.
  • 800KG, 1000KG & 1500KG Static Load.
  • Easy assembling.
  • The front door is supported by 4 mm tempered glass.
  • Lower and upper cable entries
  • Standard colors RAL 9005 and RAL 7035.
  • Heights: 16U, 20U, 26U, 32U, 36U, 42U, 45U, 47U, 51U.

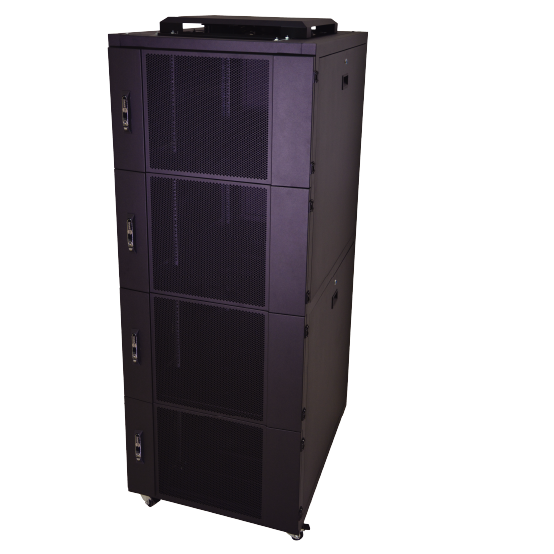

Co-location Cabinets:


Co-location cabinet is a high-quality, fully specified colocation cabinet consisting of 2, 3 or 4 independent compartments. Compartment sizes vary depending on the height of the rack.


  • 19’’Free Standing type rack cabinet.
  • In the Width (800mm) & Depth (1000mm) range.
  • From 42U to 45U rack cabinets are offered.
  • Carrying frame is steel construction with 2mm thickness
  • Adjustable feet and heavy duty castors.
  • 1500KG Static Load.
  • The front door is supported by 4 mm tempered glass & Perforated 60%.
  • Lower and upper cable entries
  • Standard colors RAL 9005 and RAL 7035.
  • Heights: 42U, 45U.

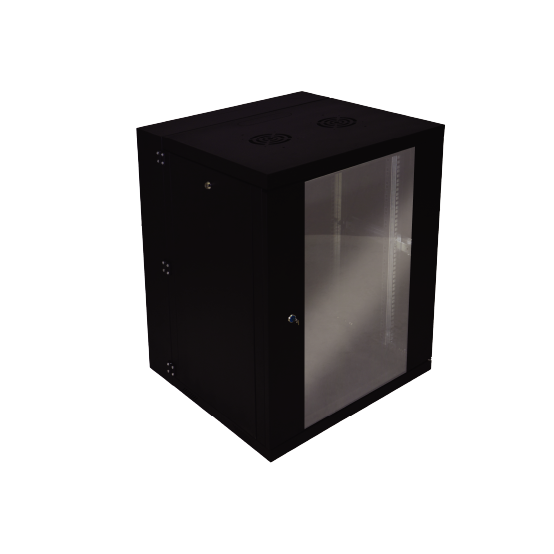

Wall Mount Cabinets:


Wall mount rack cabinets (Single Section & Double Section) are widely used in the intelligent construction of communities, wiring closets, corridors with small space, and communication and network environments with less installed equipment. Wall mount rack cabinet has advantages of small size, easy installation and disassembly, easy management.


  • In the Width (600mm) & Depth (450mm, 600mm & 650mm) range.
  • Openable and lockable side and back covers.
  • Easy mounted on wall.
  • 100KG Static Load.
  • The front door is supported by 4 mm tempered glass and sheet frame.
  • Standard colors RAL 9005 and RAL 7035.
  • Heights: 7U, 9U, 12U, 16U, 20U.

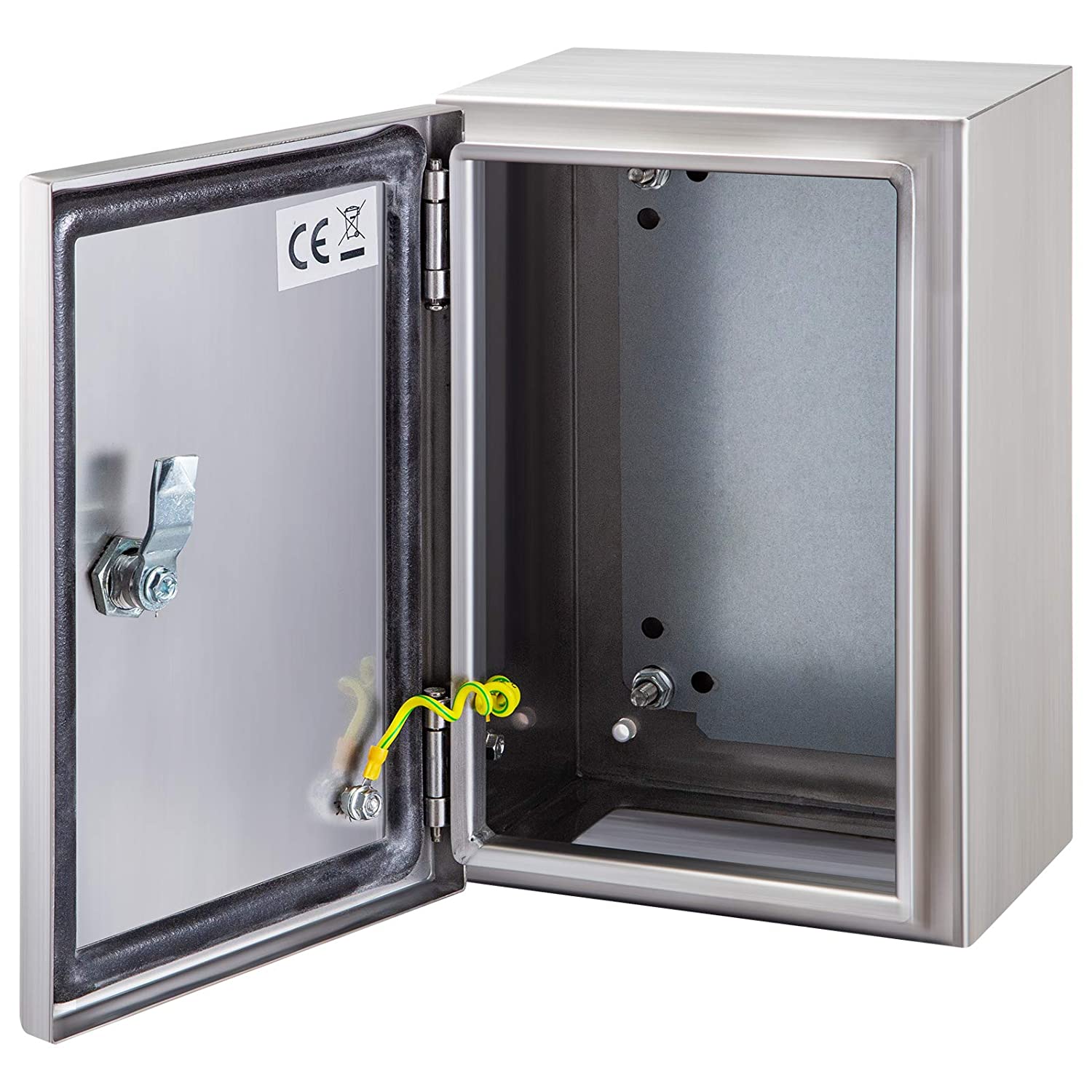

Outdoor Cabinets:


Outdoor IP66 Cabinets are suitable for IT and Telecommunication solutions in outdoor conditions. Protection against dust and water. Provides IP66 protection class by polyurethane seal on door. RAL7035 light gray polyester electrostatic powder paint is applied on the mono block structure to protect the cabinet from corrosion, heat, environmental influences and prolong the product life. Insulation material available between single or double walled structure.
